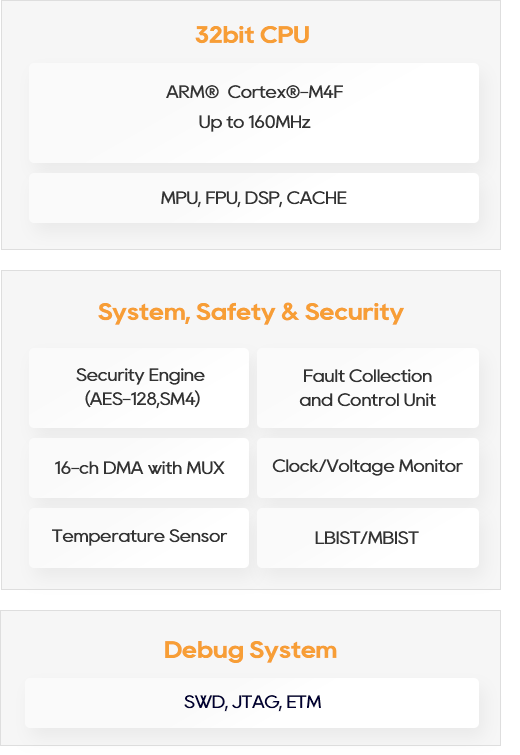

CVM014x 32-bit microcontroller product series are designed for embedded applications on the automotive electronic area, featuring versatility, high performance and high reliability. CVM014x product series have obtained ISO26262 ASIL-D Functional Safety Process Certification issued by TÜV Rheinland and ISO26262 ASIL-B Functional Safety Product Certification issued by National New Energy Vehicle Technology Innovation Center (NEVC). All of the company's products have passed the AEC-Q100 Automotive Reliability Test Standard and are embedded with information security modules and encryption engines.
  • Overview

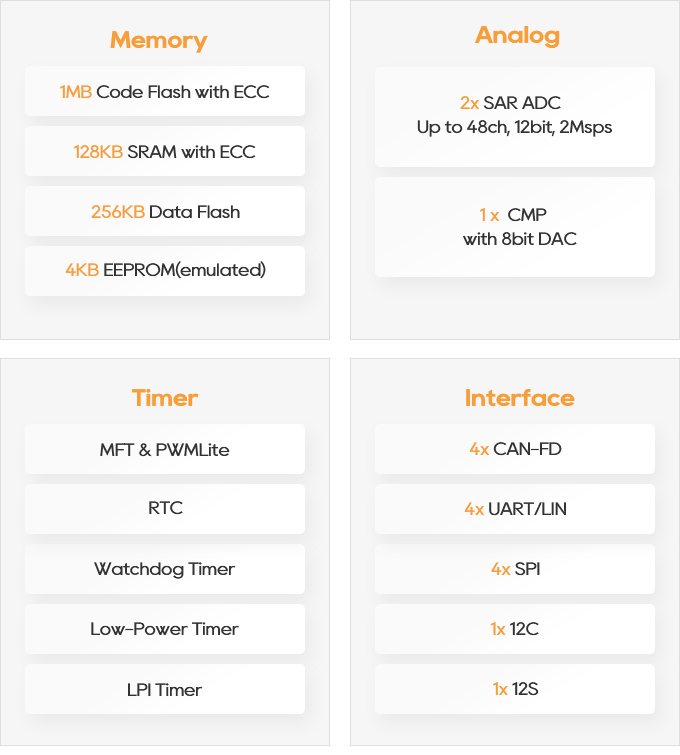

  • Technical Data
  • Development tool
  • Application
  • Download



Evaluation Board

• 2-channel CAN

• 2-channel LIN

• 1-channel USB to UART communication

• 1 channel of PWM controlled RGB multi-color LEDs

• 3-channel monochrome LED

• 1 channel I2C interface to EEPROM

• 1 channel SPI interface to 3-axis acceleration sensor

• 2-channel potentiometer to provide analog input

• 3-channel user key input

Motor Driver

• Supports up to 24V, 100W BLDC, PMSM and IM motors

• Three-phase phase current sampling

• Three-phase phase voltage sampling

• DC bus current sampling

• DC bus voltage sampling

• Phase open detection

• Phase overcurrent detection

• Bus overcurrent detection

• Connector for brake resistor

• 3.3V/5V sensor power output

• Three-wire encoder/Hall sensor signal inputs

• Compatible with Arduino interface


BCM Control

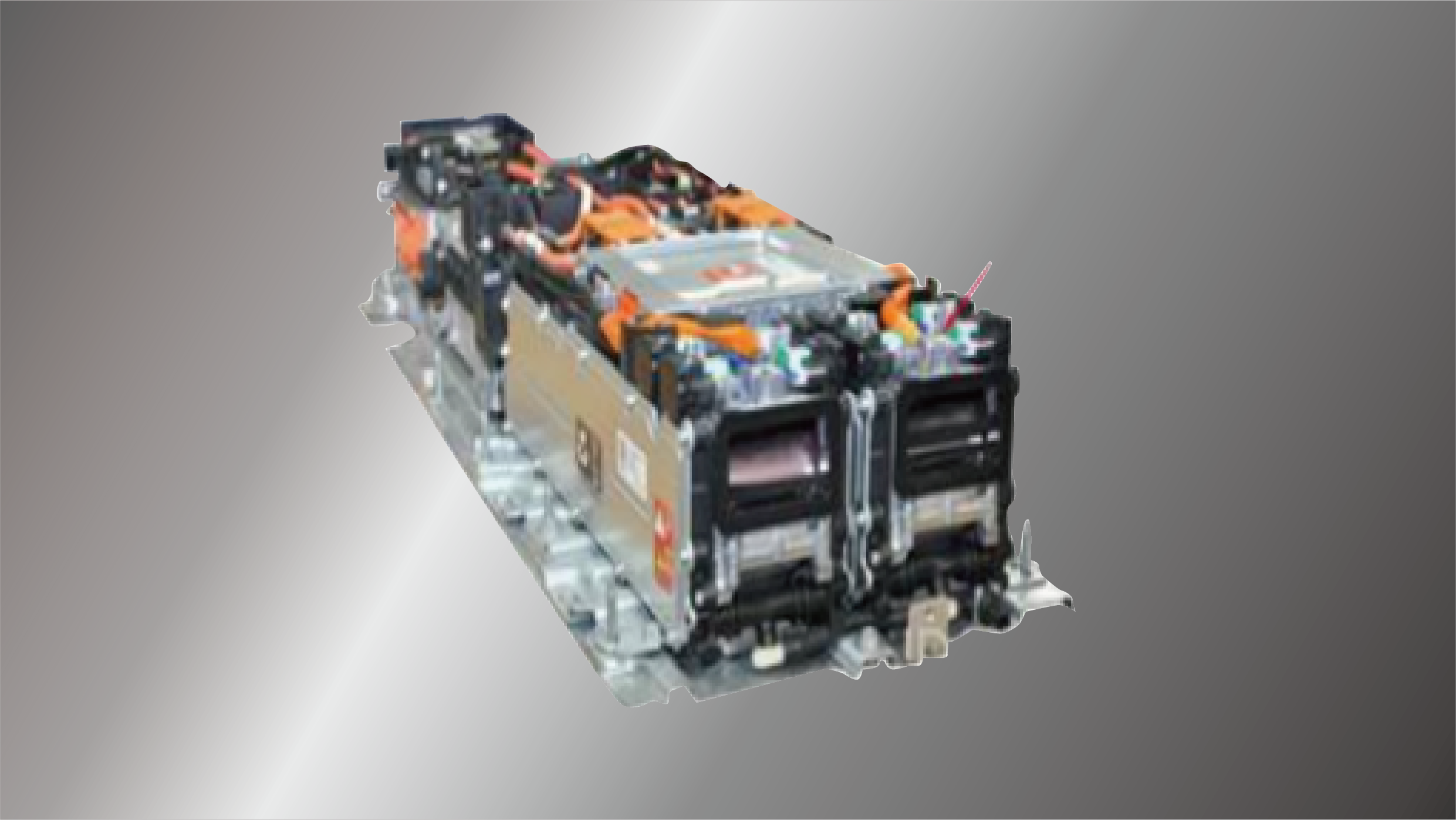

Power Cell Thermal Control

LED Headlight Control

Intelligent Cockpit

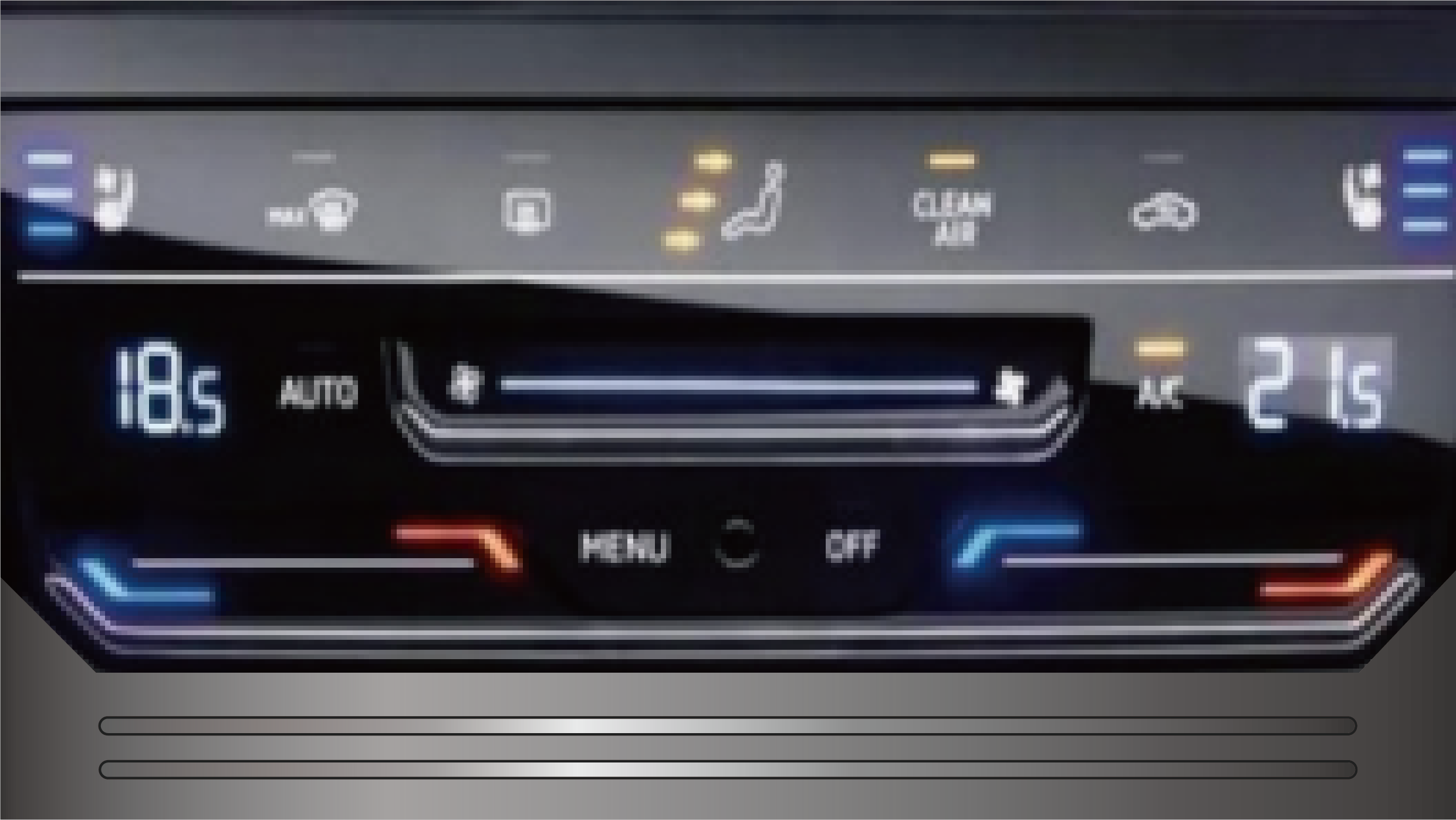

AC Control

Seat Control
